Hand Brake Teardrop Tap-in Kit w/Line for Africa Twin

This fitting allows you to add a hand lever master cylinder to the stock rear brake system without adding a new rear caliper bracket or additional calipers while maintaining all the function of your foot pedal to the rear caliper.

This system is able to deliver approximately 90% of pedal-operated braking force.

This system is completely bolt-on:

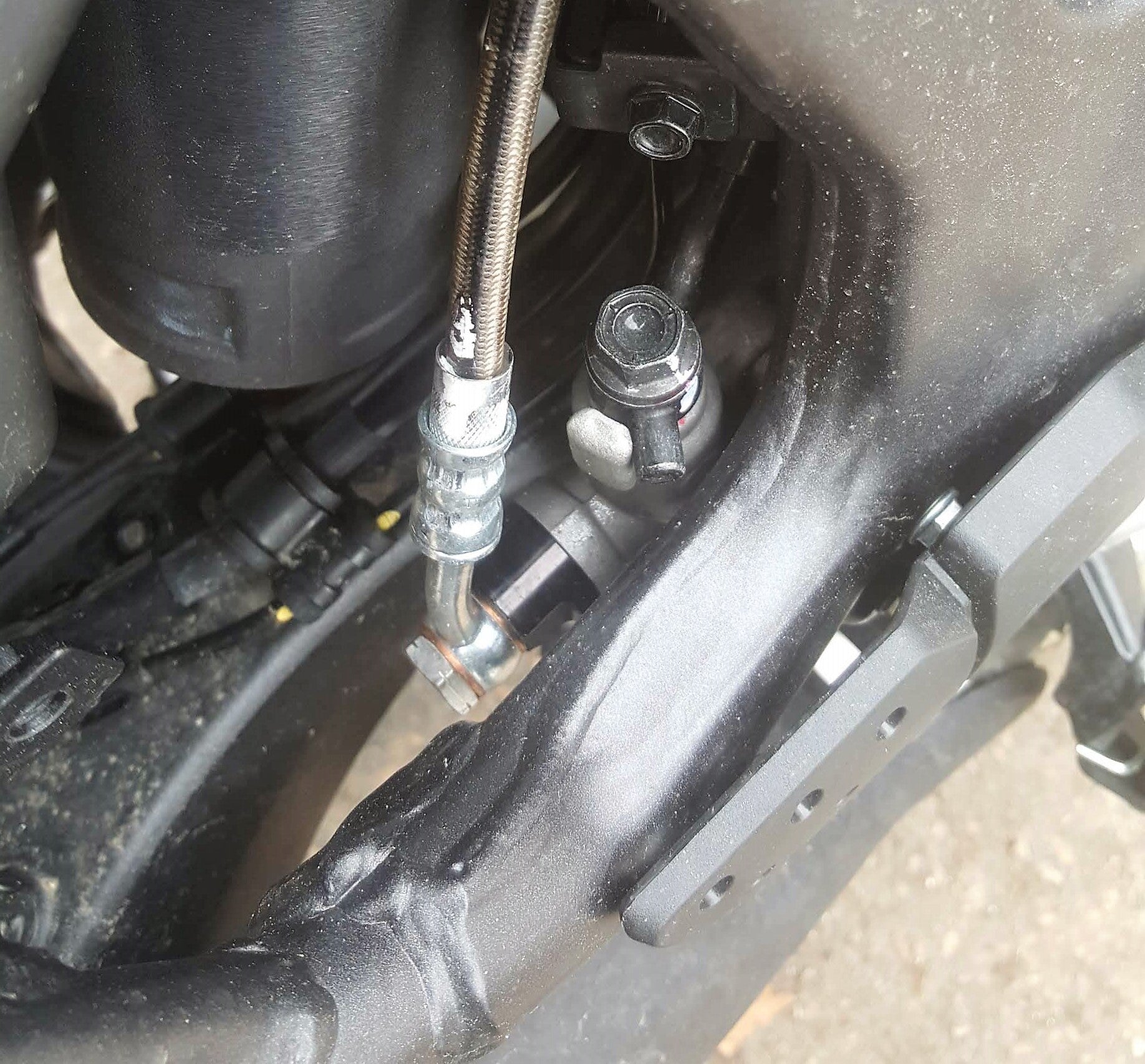

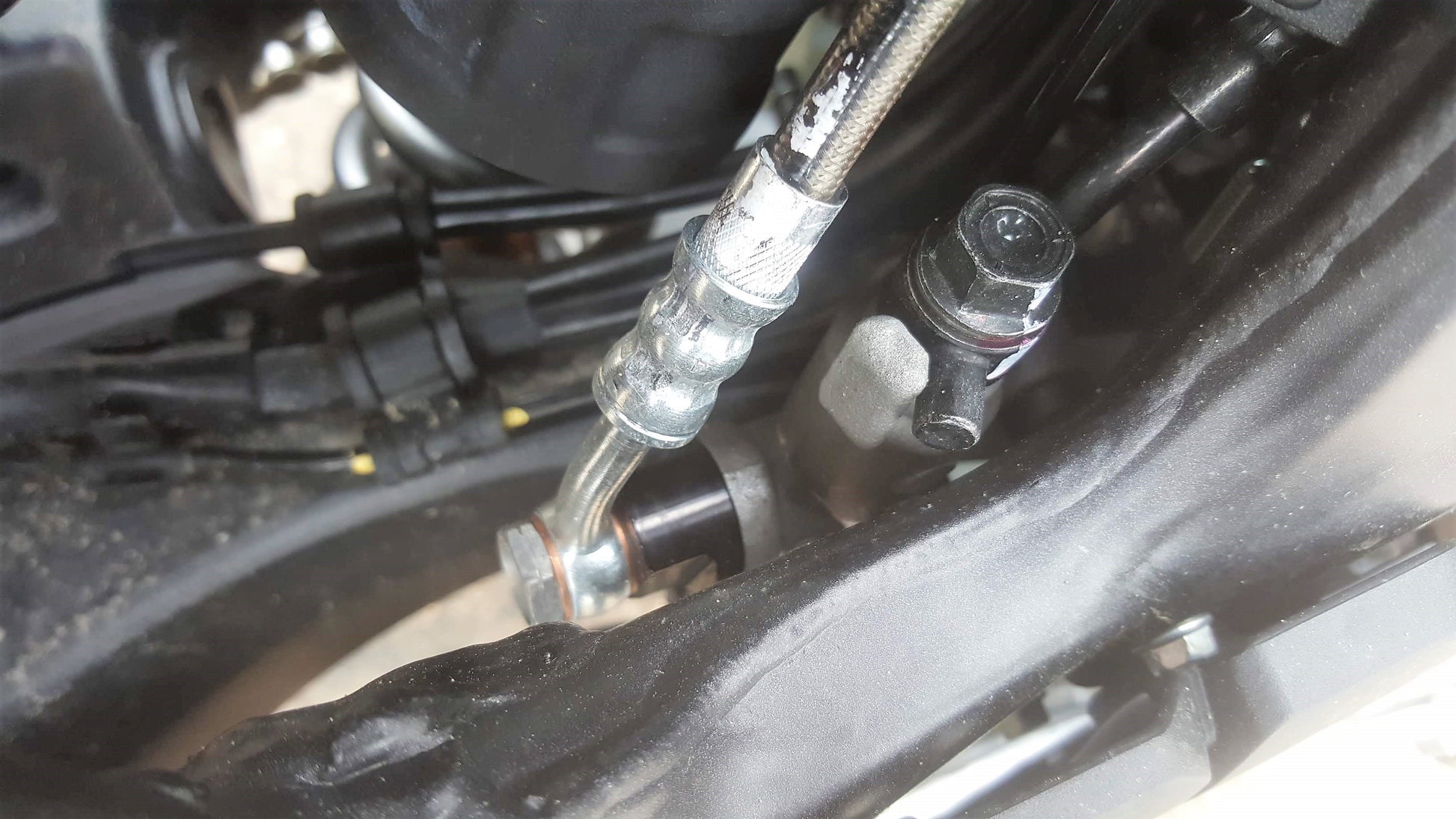

- The tap-in fitting mounts in place of the OEM rear brake fluid reservoir where it attaches to the master cylinder and uses the OEM o-ring.

- There is a one-way ball valve inside the OEM foot brake master that closes when the foot pedal is pressed to send pressure to the caliper and opens when the hand lever is used to deliver pressure to through the foot brake master to the caliper.

- Only one brake fluid reservoir will remain attached to the hand brake reservoir to supply the system.

- A line is included to run from the hand lever to the tap-in fitting with a 90 degree bend at the hand lever and a 20 degree bend at the tap in fitting.

- All banjo bolts and crush washers are included
